Main equipment

• Complex equipment for SAR dosimetry (Comosar Satimo) consisting of 6 axle robot and control bench (KUKA), electric field probes, validation dipole antennas , SAM Twin phantoms and flat phantom, simulation liquids for 900/1800/2100 MHz etc;
• Calibration and validation system for local field( E&H) and temperature measurements (Satimo);
• Measurement kit for the complex dielectric permittivity of the simulation liquid (Satimo) consisting of measuring probe for the complex dielectric permittivity and conductivity of the simulation liquid, network analyzer VNA(Anritsu) etc;
• Measurement kit for the operational autonomy of the mobile phones consisting of:
• DC/AC programmable supply source (Xantrex);
• Operational autonomy measuring equipment (Yokogawa);
• Wireless network simulator for the in force standards
(GSM, CDMA, UMTS, DECT, WLAN etc.), CMU200(Rohde&Schwarz) and accessories;
• SAR measurement portable instrument SAR(Maschek);
• Dosimeter for mobile terminals (Maschek);
• Wide band amplifier (Parzich);
• Digital oscillograph Wave Surfer 44MXs(Lecroy);

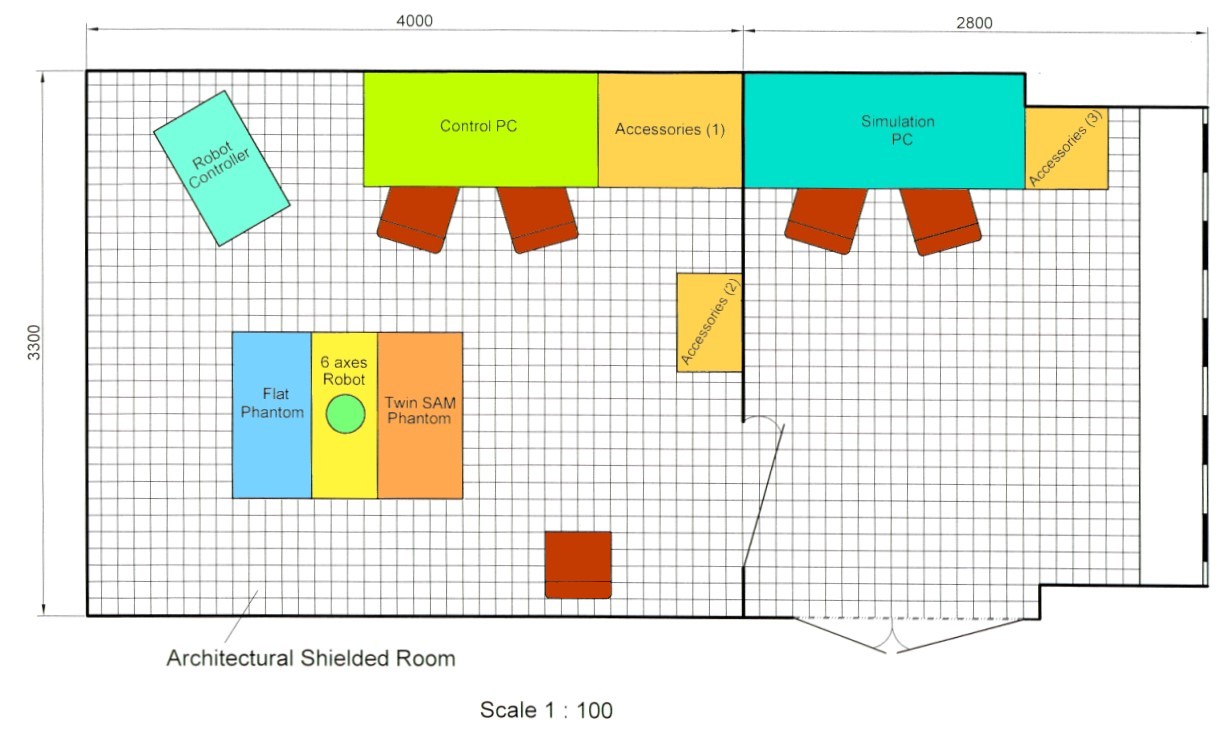

The project included the arrangement and equipping of the SAR laboratory (see the drawing given here)
